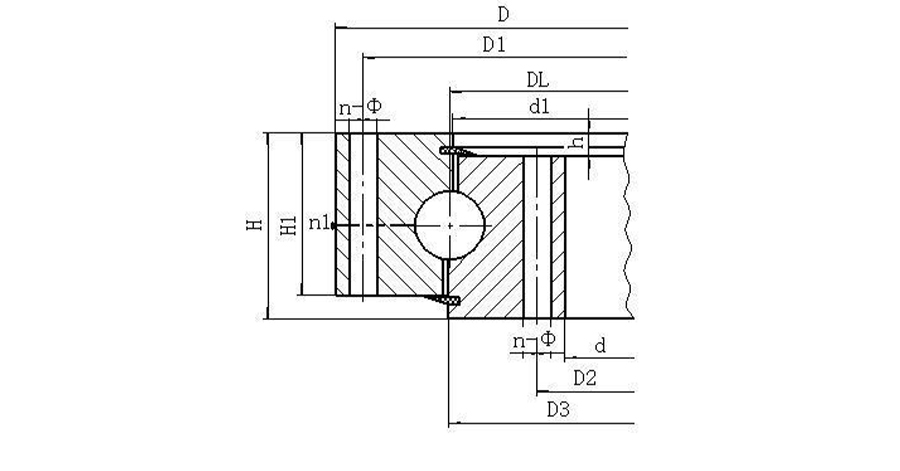

Single row four-point contact ball slewing bearings (Q Series) - toothless type

Structure characteristics, performance, scope of application

Single-row four-point contact ball SLEwing bearing is composed of two seat rings, compact structure, light weight, four point contact between steel ball and circular raceway, can bear axial force, radial force and tipping moment at the same time, rotary conveyor, welding operator, small and medium-sized cranes and excavators and other construction machinery can be selected.

serial number

model

Overall dimensions

Mounting hole size

Structure size

No tooth

H

Du

Dn

n

holeA

Screw holeB/C/D

n1Number of oil cup

h

D

d

φ

d1

T

mm


mm


mm

1

QU.315.20

408

222

60

370

260

10

17

M16

24

2

10

QU.315.20A

2

QU.355.20

448

262

60

410

300

10

17

M16

24

2

10

QU.355.20A

3

QU.400.20

493

307

60

455

345

12

17

M16

24

2

10

QU.400.20A

4

QU.450.20

543

357

60

505

395

12

17

M16

24

2

10

QU.450.20A

5

QU.500.20

593

407

60

555

445

14

17

M16

24

2

10

QU.500.20A

6

QU.560.20

656

464

70

618

502

14

17

M16

30

2

10

QU.560.20A

7

QU.630.20

726

534

70

688

572

16

17

M16

30

2

10

QU.630.20A

8

QU.710.20

806

614

70

768

652

18

17

M16

30

2

10

QU.710.20A

9

QU.800.20

896

704

70

858

742

20

17

M16

30

2

10

QU.800.20A

10

QU.800.25

908

692

78

864

736

18

22

M20

36

2

10

QU.800.25A

11

QU.900.25

1008

792

78

964

836

20

22

M20

36

2

10

QU.900.25A

12

QU.1000.25

1108

892

78

1064

936

24

22

M20

36

2

10

QU.1000.25A

13

QU.1000.32

1124

876

90

1074

926

24

24

M22

40

2

10

QU.1000.32A

14

QU.1120.32

1244

996

90

1194

1046

28

24

M22

40

4

10

QU.1120.32A

15

QU.1250.32

1374

1126

90

1324

1176

32

24

M22

40

4

10

QU.1250.32A

16

QU.1400.32

1524

1276

90

1474

1326

36

24

M22

40

4

10

QU.1400.32A

17

QU.1250.40

1394

1108

102

1336

1164

32

26

M24

45

4

12

QU.1250.40A

18

QU.1400.40

1544

1258

102

1486

1314

36

26

M24

45

4

12

QU.1400.40A

19

QU.1600.40

1744

1458

102

1686

1514

40

26

M24

45

4

12

QU.1600.40A

20

QU.1800.40

1944

1658

102

1886

1714

44

26

M24

45

4

12

QU.1800.40A

21

QU.1600.50

1766

1434

124

1704

1496

40

30

M27

50

4

12

QU.1600.50A

22

QU.1800.50

1966

1634

124

1904

1696

44

30

M27

50

4

12

QU.1800.50A

23

QU.2000.50

2166

1834

124

2104

1896

48

30

M27

50

6

12

QU.2000.50A

24

QU.2240.50

2406

2074

124

2344

2136

54

30

M27

50

6

12

QU.2240.50A

25

QU.2500.50

2666

2334

124

2604

2396

60

30

M27

50

6

12

QU.2500.50A

26

QU.2500.60

2696

2304

150

2626

2374

60

33

M30

56

6

14

QU.2500.60A

Note:

1, n1 is the number of lubricating oil holes, uniform distribution: oil cup M10×1 JB/T7940.1-JB/T7940.2

2, the installation hole n-Φ can be changed to screw hole; Tooth width b can be changed to H-h.

3. The circumferential force of the gear in the table is the maximum circumferential force, and the rated circumferential force is 1/2.
